Lightweight aluminium davit arm provides comprehensive confined space access and material lifting solutions for dual operator protection and rescue operations.
Complete confined space solution designed for safe vertical rope access and material lifting in restricted access environments. Foldable davit system accommodates two operators up to 150 kg each (including tools) simultaneously whilst providing 500kg material lifting capacity with multiple base configurations and extensive Tractel equipment compatibility.
Product description

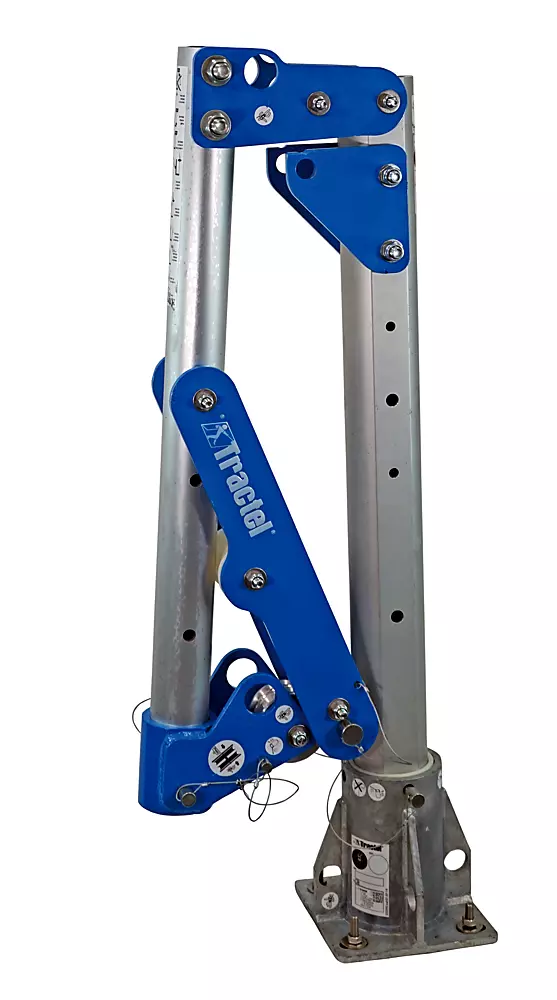

The Davitrac serves as a comprehensive anchor point system designed for personnel accessing confined spaces including silos, sewers, manholes, and industrial vessels. Constructed from lightweight aluminium with 29 kg operational weight, this foldable davit provides dual functionality as both fall protection anchor point for two operators up to 150 kg each (including tools) and material lifting anchor with 500 kg working load limit. The system’s compact design facilitates easy transportation in small construction vehicles whilst maintaining operational versatility across diverse confined space applications. Advanced engineering centres on adjustable anchor head positioning from 1.68 m to 1.92 m maximum height with arm offset adjustable from 400 mm to 700 mm in 15 cm increments. The head incorporates dual anchor points and pulleys designed for cable guidance including lifting, PPE, and emergency cables. Several base configuration options accommodate permanent installation via chemical anchors or portable self-stabilising deployment, enabling 360-degree mast rotation with 90-degree locking intervals for operational flexibility. Primary applications span confined space operations, rescue scenarios, rope access work, and material handling where dual operator protection with integrated lifting capability is essential. The system accommodates comprehensive Tractel equipment integration including Blocfor fall arrest devices, caRol rescue winches, and Scafor manual hoists through approved bracket systems. Compliance with EN795:2012, EN1496, and Machinery Directive 2006/42/CE ensures professional-grade safety standards whilst CEN/TS 16415:2013 certification provides dual operator fall arrest capability.
Key features
Lightweight aluminium construction with 29kg operational weight for enhanced portability
Dual operator capacity supporting 150 kg per person with 500 kg material lifting capability
Adjustable anchor head from 1.68 m to 1.92 m height with 400 mm to 700 mm arm offset positioning

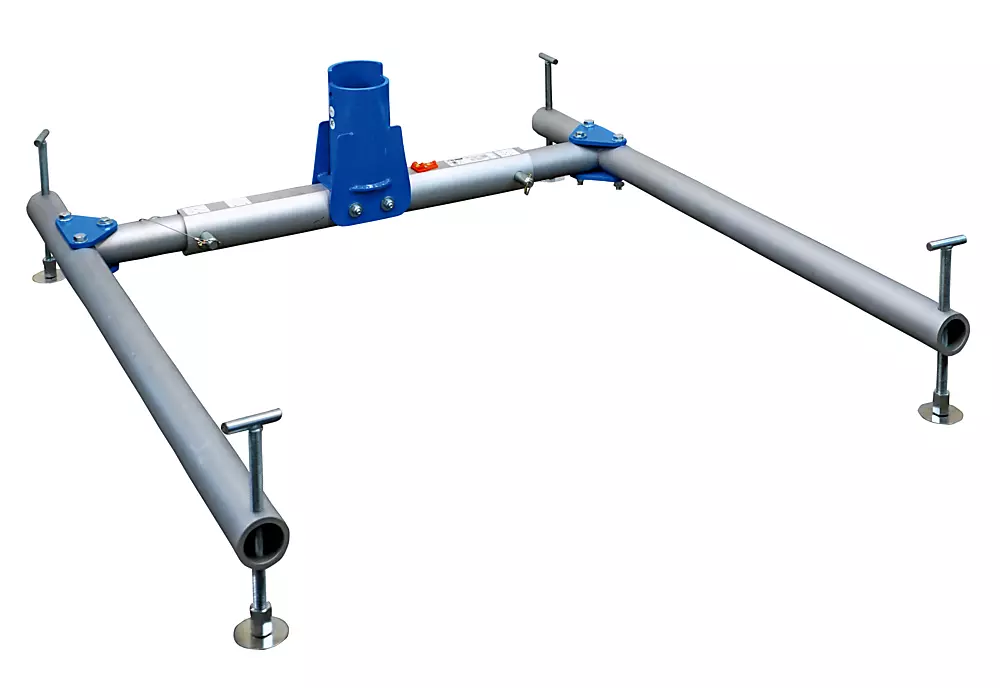

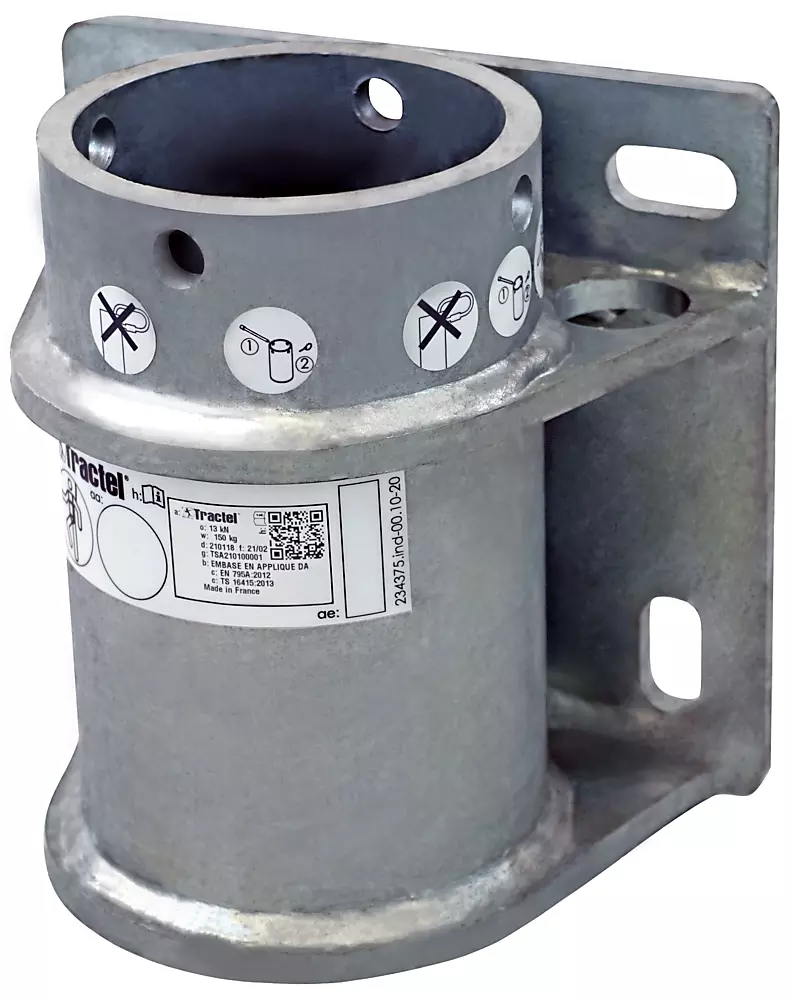

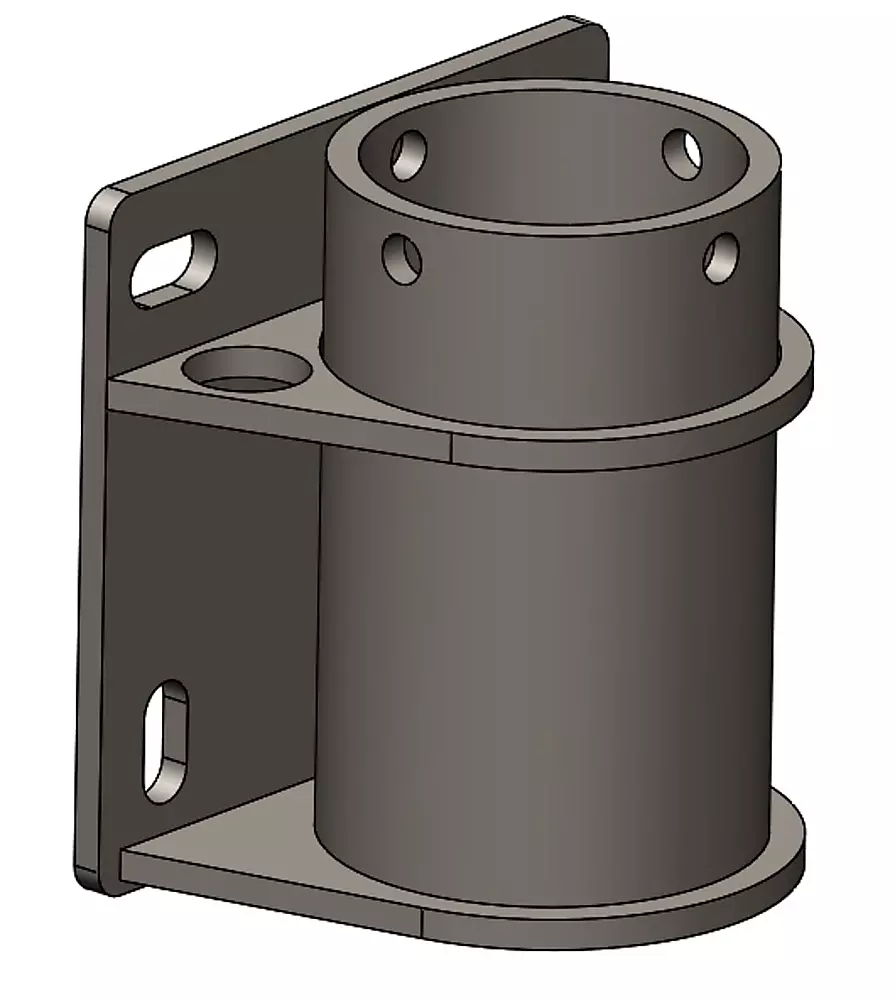

Eight base configuration options including wall-mounted, floor-mounted, and self-stabilising portable systems
360-degree rotating mast with 90-degree locking intervals for operational positioning flexibility
Comprehensive Tractel equipment compatibility through approved bracket integration systems
Dual anchor points with integrated pulleys for PPE, lifting, and emergency cable guidance
Multi-standard compliance including EN795:2012, EN1496, Machinery Directive 2006/42/CE, and CEN/TS 16415:2013
